Yale Nexus HCA Stays
Stock Code:
AAP240A
Stock Code:
AAP340A
Stock Code:
AAP450H
Stock Code:
AAP710H
Price:
$24.47 (Incl. GST)
Price:
$32.66 (Incl. GST)
Price:
$55.27 (Incl. GST)
Price:
$98.47 (Incl. GST)
*All fields must be selected to add to cart*
Description
A highly innovative range of high capacity aluminium stays, the Nexus stay range is designed to replace existing A stay ranges in the New Zealand market. The Nexus stay range can support window weights of up to 60kg and 2m in height, while still maintaining endurance performance and handle forces, making it the highest capacity aluminium residential window stay on the market.
Features:
- Supports window weights up to 60kg
- For installation into windows up to 2m high
- Patent pending for innovative integrated friction joint
- Geometry optimized for window range
- Manufactured with unique ‘pull-in’ feature
- For projected top hung windows
- Complies with requirements in NZ:4211
- Provides compression weather seal
- Made from extruded aluminium with no sliding channels
- Tested to 36,000 cycles
- Supplied in trade pack as a pair
- Black finish
240 - Full Friction
- Maximum sash height 600mm
- Opening angle 34°
- Maximum sash weight 10kg
340 - Full Friction
- Maximum sash height 1000mm
- Opening angle 28°
- Maximum sash weight 18kg
450 - High Friction
- Maximum sash height 1500mm
- Opening angle 20°
- Maximum sash weight 45kg
710 - High Friction
- Maximum sash height 2000mm
- Opening angle 17°
- Maximum sash weight 60kg

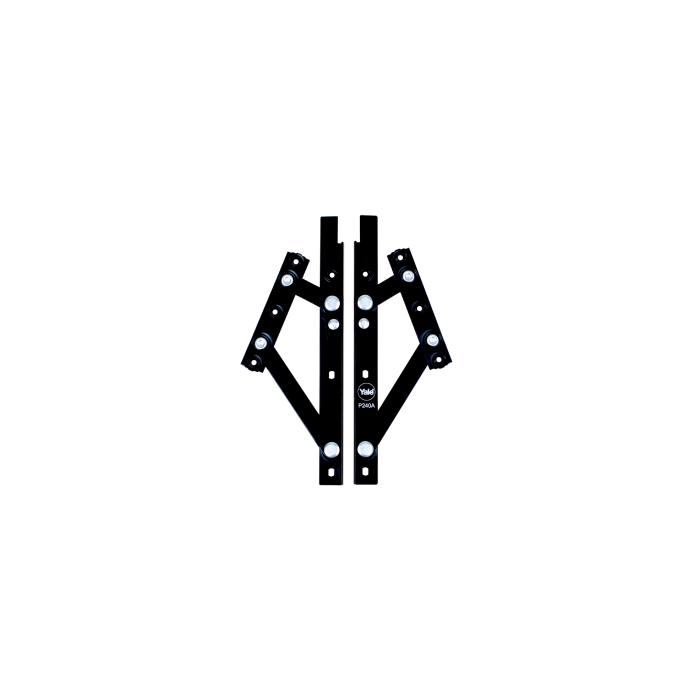

Yale Nexus HCA Stays - 240 STD
Details
-
Material:Aluminium
-
Function:Window Stay
-
Brand:Yale
-
Dimensions:As per image shown
Yale Nexus HCA Stays - 340 STD
Details
-
Material:Aluminium
-
Function:Window Stay
-
Brand:Yale
-
Dimensions:As per image shown
Yale Nexus HCA Stays - 450 HIGH
Details
-
Material:Aluminium
-
Function:Window Stay
-
Brand:Yale
-
Dimensions:As per image shown
Yale Nexus HCA Stays - 710 HIGH
Details
-
Material:Aluminium
-
Function:Window Stay
-
Brand:Yale
-
Dimensions:As per image shown
